AOES-AA2050A Three-Axis Dual-Sensor Detection Device
by Changchun Allview Optoelectronic Technology Co., Ltd.Model: AOES-AA2050A
The AOES-AA2050A performs visible/infrared dual-band target imaging, search, positioning, automatic target recognition (ATR) and tracking of typical land and maritime targets, with three-axis line-of-sight stabilization. It engages personnel, vehicles, vessels and structures, and suits fire source detection, industrial inspection, environmental monitoring and ecological conservation.
Specifications
Roll
+/-45 deg
Weight
<=485 g (without vibration damping)
Azimuth
n x 360 deg
Infrared
640 x 512 uncooled, focal 35 mm, FOV <=12.5x9.4 deg
Elevation
-120 deg to +30 deg
Dimensions
<=92mm x 106mm x 131mm
Power Supply
9~16 V (DC)
Visible Light
3840 x 2160, focal 5~47 mm, FOV 61.5x35 ~ 7x3.97 deg
Power Consumption
Average 10 W, peak 20 W
Max Angular Velocity
>=60 deg/s
Related Products
Electronics & Components
AOES-AA2030 Visible/Infrared Dual-Sensor Two-Axis Miniature Pod
Changchun Allview Optoelectronic Technology Co., Ltd.
Details →
Electronics & Components
AOES-AB3030 Dual Visible/Infrared Tri-Sensor Two-Axis Pod
Changchun Allview Optoelectronic Technology Co., Ltd.
Details →
Electronics & Components

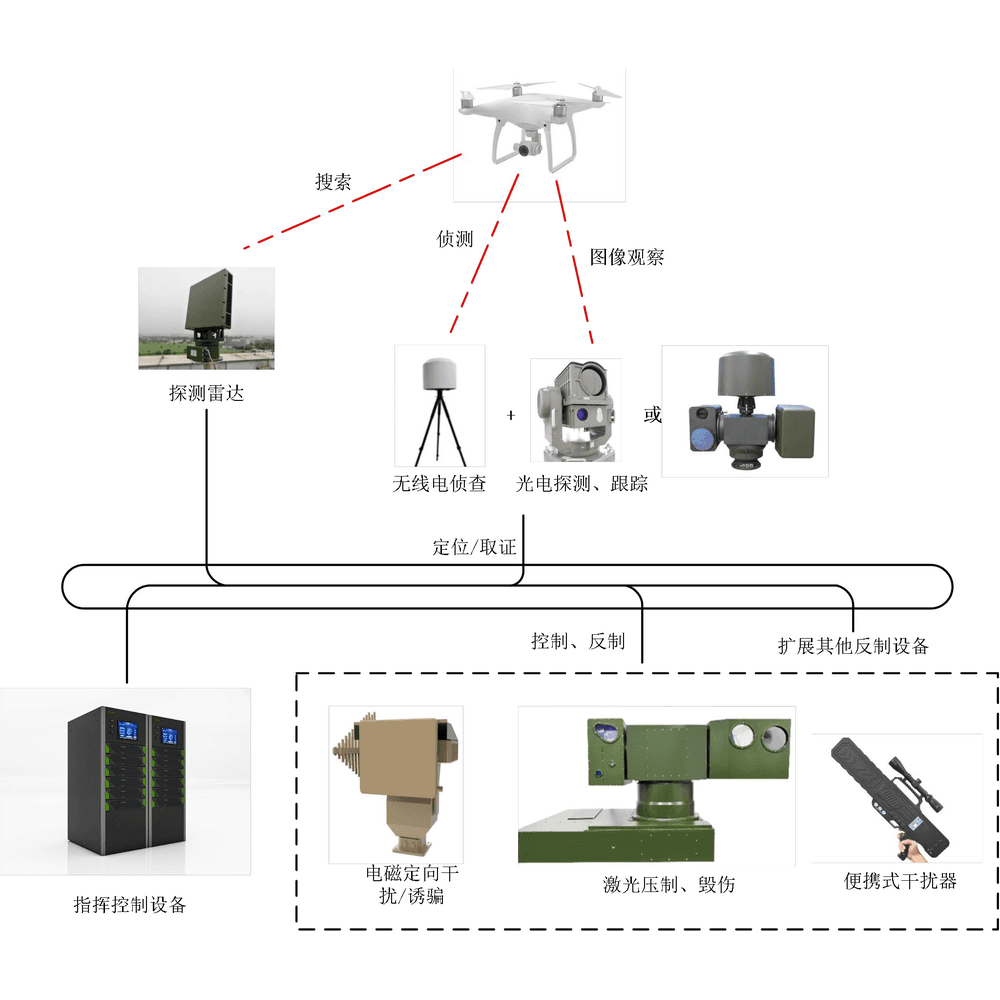

Fixed-Deployment Drone Detection and Countermeasure System
